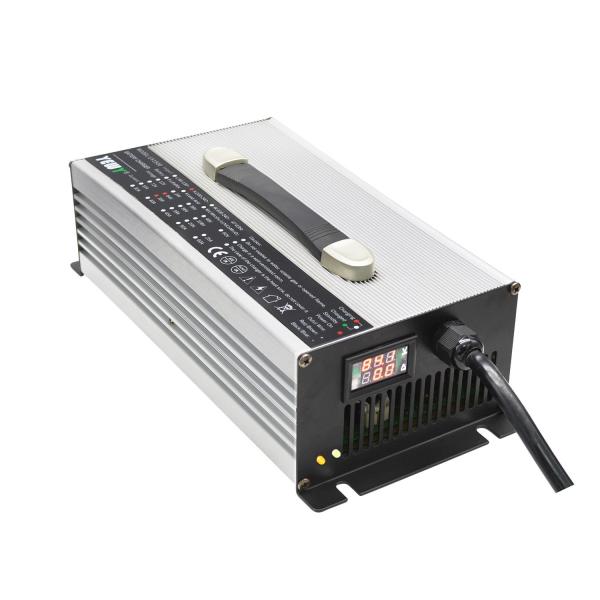

24V 45A LCD Display Efficient High Powe Charger 1500W
Product Description:
Introduction: High-power 1500W-24V45A chargers have revolutionized battery charging technology, offering rapid charging and enhanced customization. This article explores the key features of these chargers, including customizable voltage and current, charging modes and timeframes, safety provisions, compatibility with various batteries, efficiency, MCU-controlled charging curves, communication options, and intelligent temperature-controlled fans.
Customizable Voltage and Current: To ensure optimal charging, the charger's output voltage and current must match the battery's requirements. It is essential to align the charger's voltage with the battery's rated voltage and the current with its charging needs.
Charging Modes and Time: These chargers support fast charging, constant current charging, and constant voltage charging. They offer appropriate charging modes and durations based on battery type and requirements.
Safety Features: Multiple safety features, such as overvoltage and overcurrent protection, safeguard the charging process, ensuring user safety and avoiding potential issues.
Compatibility: These chargers are compatible with various battery types, including lead-acid and lithium-ion batteries, preventing compatibility issues during charging.
Efficiency and Energy Conservation: With an efficiency rating of 89% or higher, these chargers optimize energy utilization, reducing wastage and environmental impact, resulting in lower energy costs.
MCU-Controlled Adjustable Charging Curve: An embedded MCU allows automatic and customizable charging curves, enhancing protection and enabling personalized charging profiles.
Communication Options: RS485, CAN, and Bluetooth interfaces facilitate monitoring, control, and data access using smartphones or other devices.
Intelligent Temperature-Controlled Fan: An intelligent temperature-controlled fan regulates temperature, ensuring efficient cooling and preventing overheating.
Conclusion: High-power 1500W-24V45A chargers offer efficient and customizable battery charging solutions. With their advanced features, including customizable voltage and current, various charging modes, safety provisions, compatibility with different batteries, high efficiency, MCU-controlled charging curves, communication options, and intelligent cooling, these chargers optimize charging processes, ensuring faster charging speeds and sustainable energy usage.
| Type | Specification | DC Voltage(Max) | (CC:A)
Charging current | Light Turning(A) |
| Li-ion | Lifepo4 | Lead acid | Lithium | Lead acid |
| UY1500 | 12V 70A | 12.6V/16.8V | 14.6V | 14.7V | 70A | 8%CC | 25%CC |
| 24V 45A | 25.2V/29.4V/33.6V | 29.2V | 29.4V | 45A |
| 36V 30A | 42V/46.2V | 43.8V | 44.1V | 30A |
| 48V 25A | 50.4V/54.6V/58.8V | 54.75V/58.4V | 58.8V | 25A |
| 60V 20A | 63V/67.2V/71.4V | 73V | 73.5V | 20A |
| 72V 16A | 79.8V/84V | 87.6V | 88.2V | 16A |
| 84V 14A | 88.2V | 102.2V | 107.8V | 14A |
| 96V 12A | 100.8V | 109.5V | 117.6V | 12A |
| 108V 10A | 113.4V | 120.45V | 132.3V | 10A |
| 120V 8A | 126V | 131.4V | 147V | 8A |
Product Features:
1. AC input: 100-120V /200-240V AC, 47 to 63Hz
2. Output power:1500W
3. LED indicator light logo: red and green, double color instructions, red charging green finished or standby
4. Efficiency: >=89%
5. With MCU-automated adjustable charging curve, enhanced protection features, and the ability to customize the charging curve
6. Communication options: RS485, CAN, and Bluetooth
7. Protections: Overvoltage Protection, Overcurrent Protection, Short Circuit Protection, Reverse Polarity Protection,Temperature Protection
